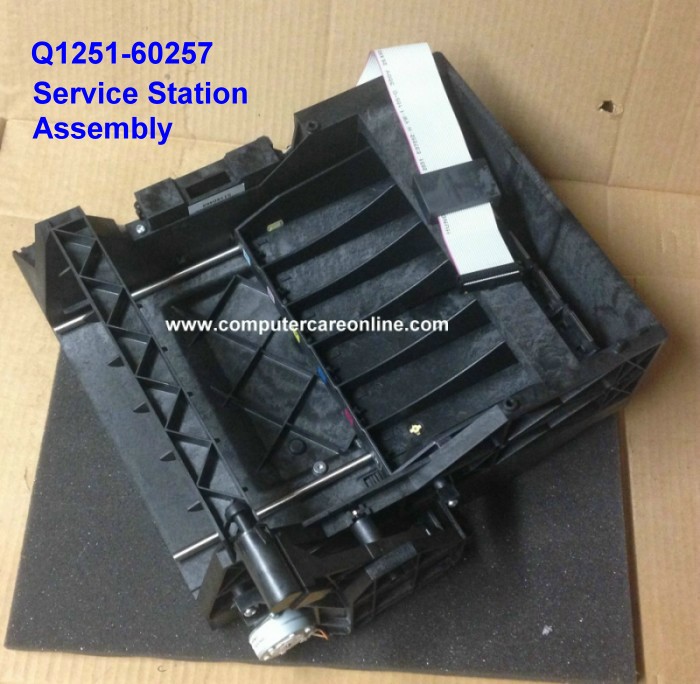

Q1251-60257 Service Station Assembly for HP DesignJet 5000 and DesignJet 5500 Plotters.

Q1251-60257 Service Station replaces C6090-60083

Usually associated with these system error codes: 0B000A, 010042, 0C1001,

This HP DesignJet Service station assembly is a new part and comes complete with motors, spittoon foam, drop detector, and primer assembly.  This purchase requires no exchange of your old part.

Used in the following DesignJet plotter and wide format printer models
DesignJet 5000 (42-inch)  C6090A,  C6090AR
DesignJet 5000 (42-inch/UV)  C6090V
DesignJet 5000PS (42-inch/Postscript)  C6091A,  C6091AR
DesignJet 5000PS (42-inch/UV/Postscript)  C6091V
DesignJet 5000 (60-inch)  C6095A,  C6095AR
DesignJet 5000 (60-inch/UV)  C6095V
DesignJet 5000PS (60-inch/Postscript)  C6096A,  C6096AR
DesignJet 5000PS (60-inch/UV/Postscript)  C6096V
DesignJet 5500 (42-inch)  Q1251A,  Q1251AR
HP AB Eaglejet II RTL 42" Printer  Q1251E
DesignJet 5500 (42-inch/UV)  Q1251V,  Q1251VR
DesignJet 5500 (42-inch/Postscript)  Q1252A,  Q1252AR
EagleJet - OEM version of DesignJet 5500  Q1252C
DesignJet 5500 (42-inch/UV/Postscript)  Q1252V
DesignJet 5500 (60-inch)  Q1253A,  Q1253AR
HP AB Eaglejet II RTL 60" Printer  Q1253E
Designjet 5500 (60-inch/UV)  Q1253V,  Q1253VR
Designjet 5500 (60-inch/Postscript)  Q1254A,  Q1254AR
Designjet 5500 (60-inch/UV/Postscript)  Q1254V

Refer to page 8-65 in the service manual for remove and replace instructions.

New OEM HP Part Requires NO Exchange of Old Part.

Ships by dimensional weight 17 x 14 x 10 inches.
