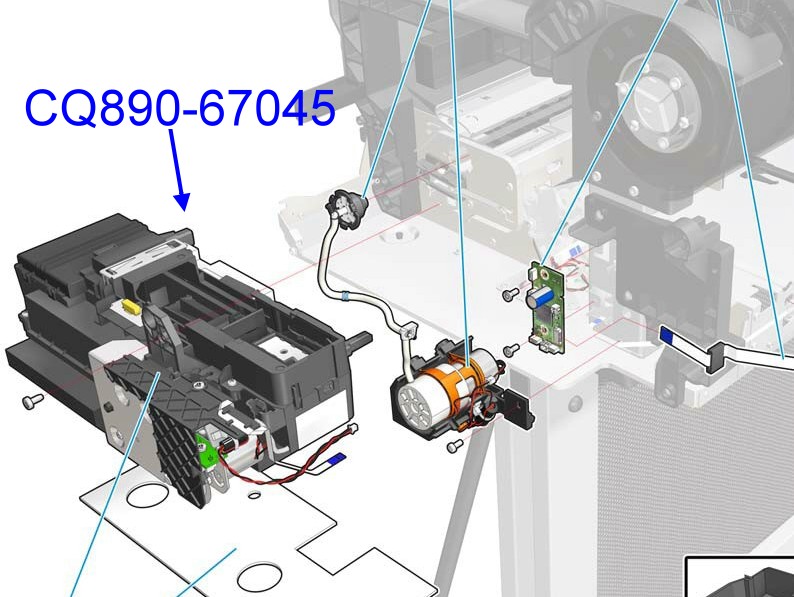

CQ890-67045 HP DesignJet Service Station New

CQ890-67045 New OEM HP DesignJet Plotter Service Station Assembly

The service station is offered as a complete service part for full replacement. The failures from this
subsystem are usually related to the mobile parts: motor or encoder failures that prevent the shuttle from
reaching the positions for capping or uncapping.

Service Station Used in all of these HP DesignJet Plotter and wide format printer models:

DESIGNJET T100 24-IN PRINTER
DESIGNJET T120 24-IN 2018 ED. PRINTER
DESIGNJET T120 24-IN PRINTER
DESIGNJET T125 24-IN PRINTER
DESIGNJET T130 24-IN PRINTER
DESIGNJET T520 24-IN 2018 ED. PRINTER
DESIGNJET T520 24-IN EPRINTER
DESIGNJET T520 24-IN PRINTER
DESIGNJET T520 36-IN 2018 ED. PRINTER
DESIGNJET T520 36-IN EPRINTER
DESIGNJET T520 36-IN PRINTER
DESIGNJET T525 24-IN PRINTER
DESIGNJET T525 36-IN PRINTER
DESIGNJET T530 24-IN PRINTER
DESIGNJET T530 36-IN PRINTER
DesignJet T520 24-in 2018 ed Printer
DesignJet T520 24-in 2018 ed. Printer
DesignJet T520 36-in 2018 ed Printer
Designjet T120 24-in ePrinter

system error 21:10
Ink System Failure

When the Service Station is replaced, it is mandatory to reset the Preventive Maintenance Kit for the
Service Station, this will trigger a simple calibration that is done with the Service Station on the next
printer startup. The calibration measures the length of the Service Station (shuttle front bump to shuttle
rear bump), which ensures a correct capping position.

New OEM HP DesignJet part requires no exchange of old parts.
